Professional UV-5R Two-Way Radio Walkie Talkie Dual Band UHF VHF Radio+Earpiece for Outdoor with LED Display Channel Encryption
€29,90
Features:
-Dual-band handheld transceiver display function menu on the display “LED”.
-DTMF encoded.
-Lithium-ion battery with high capacity.
-Commercial FM radio receiver (65 MHz~108MHz).
-Incorporates 105 codes “DCS” and 50 privacy codes “CTCSS” programmable.
-Function “VOX” (voice operated transmission).
-Alarm function.
-Up to 128 memory channels.
-Broadband (Wide)/ Narrowband (Narrow), selectable.
-High power/ low (5 W/ 1 W) selectable.
-Display illumination and programmable keyboard.
-Function “beep” on the keyboard.
-Dual Watch/ dual reception.
-Selectable Frequency Step 2.5/5/6.25/10/12.5/25 kHz.
-Function “OFFSET” (frequency offset for repeater access).
-Battery saving function “SAVE”.
-Timer transmission “TOT” programmable.
-Selecting the Scan Mode.
-Function Busy Channel Lock “BCLO”.
-Built-in RX CTCSS/DCS scan.
-Built-in LED flashlight.
-Programmable by PC.
-Level Threshold “Squelch” adjustable from 0 to 9.
-Crossband reception.
-Tone end of transmission.
-Built-in key lock.
Specification:
GENERAL:
Frequency range: 65MHz~108MHz (Only commercial FM radio reception)
VHF: 136MHz~174MHz (Rx/Tx). UHF:400MHz~480MHz (Rx/Tx)
Memory channels: Up to 128 channels
Frequency stability: 2.5ppm
Frequency step: 2.5kHz/6.25kHz/10kHz/12.5kHz/25kHz
Antenna impedance: 50 Ω
Operation temperature: -20℃+60℃
Supply voltage: Rechargeable Lithium-Ion mAh 7.4V/1800
Consumption in stand by: ≤ 75mA
Consumption in reception: 380mA
Consumption in transmission: ≤ 1.4A
Modeof operation: Simplex or semi-duplex
Duty cycle: 03/03/54 min. (Rx/Tx/Standby)

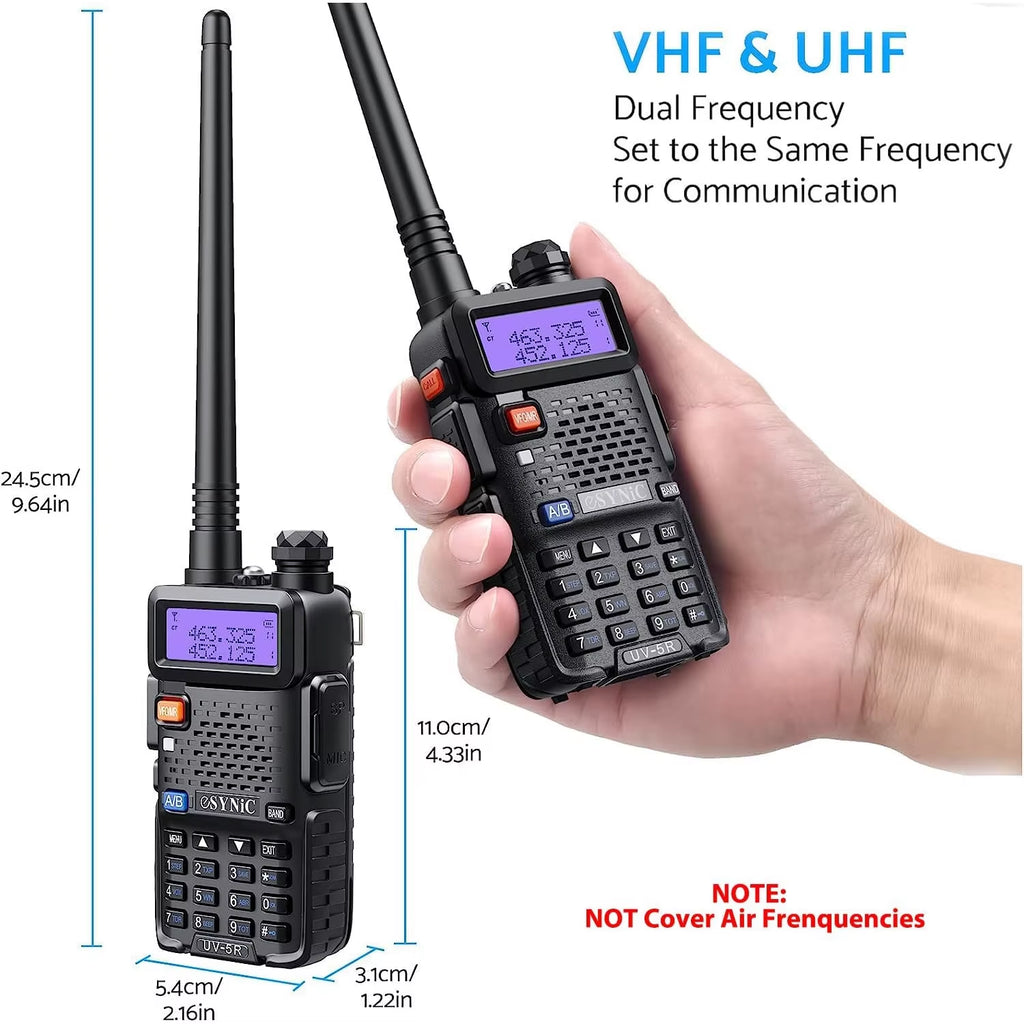

Dimensions: 58mm×110mm×32mm
Weight: 130g (approximate)
TRANSMITTER:
RF power: 5W/1W
Type of modulation: FM
Emissionclass: 16K φ F3E/11K φ F3E (W/N)
Maximum deviation: ≤ ±5 kHz/ ≤ ±2.5 kHz (W/N)
Spurious emissions: < -60 dB
RECEIVER:
Receiver sensitivity: 0.2 μV (at 12 dB SINAD)
Intermodulation: 60 dB
Audio out put: 1000mW
Adjacent channel selectivity: 65/60 dB

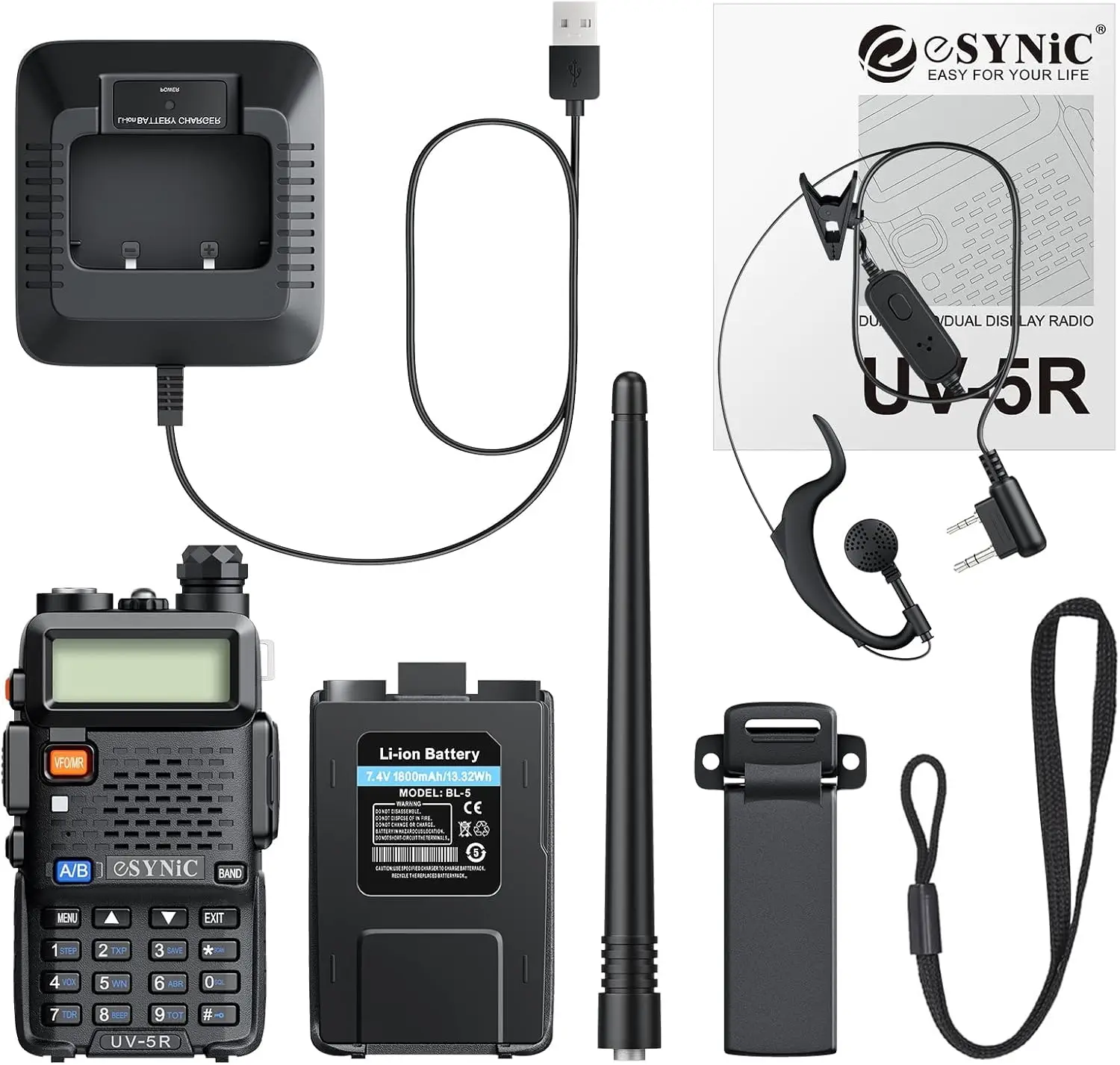

Package Include:
1 x UV-5R
1 x Li-ion Battery Pack
1 x Antenna
1 x Belt Clip
1 x ENG Manual
1 x PTT Earpiece
1 x Hand Strap
1 X USB plug adapter
